TODA Racing High Compression Forged Piston Kit

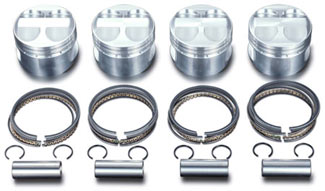

TODA Racing offers high compression forged pistons for the Honda B series DOHC VTEC engines. The kit comes complete with forged pistons, rings, clips, and heavy duty wrist pins. Offers great gains when combined with Spec B and Spec C camshafts. TODA pistons maintain the Honda factory piston to wall clearance and allow for quiet and reliable operation.

The basic form of the piston is an elliptical barrel. This forms the basis from which each part is subjected to high loads and measured for thermal expansion to accuracy of 1/1000(mm). The top edge of the piston uses a castellation design to reduce sticking, improve lubrication and sealing. The design also acts as a scuff-band to reduce run in time. The piston also feature improved oil drainage with redesigned oil channels.

TODA pistons are produced in house using a 3000 ton press and come fully balanced within 0.25 grams of each other.

	Size	B16A	B16B	B18C-R
	81.00mm	11.6 : 1	11.0 : 1	12.3 : 1	$880
	81.25mm	11.7 : 1	11.1 : 1	12.4 : 1	$880
	81.50mm	11.7 : 1	11.1 : 1	12.4 : 1	$880
	82.00mm	11.9 : 1	11.3 : 1	12.6 : 1	$880

Technical Note: Compression ratio numbers listed are with stock headgasket.

To Order Call Toll Free: 1-866-IPS-RCNG
